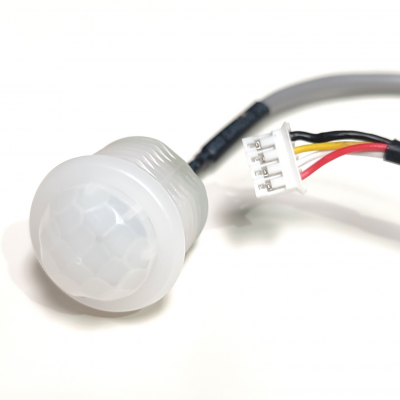

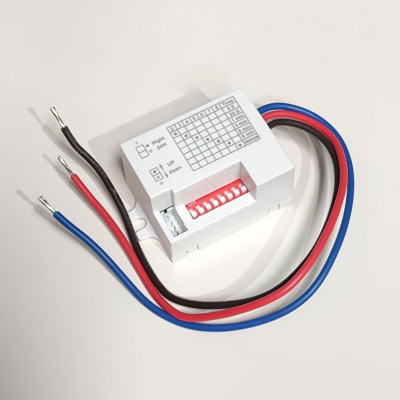

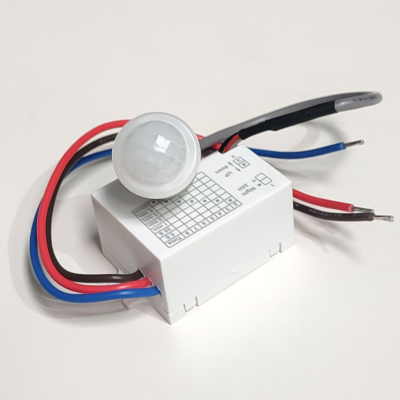

Recessed 360º Mini PIR Motion Detector
LM1394

€13.65
Tax included
rating No review at the moment
360º
IP20

More info about this product

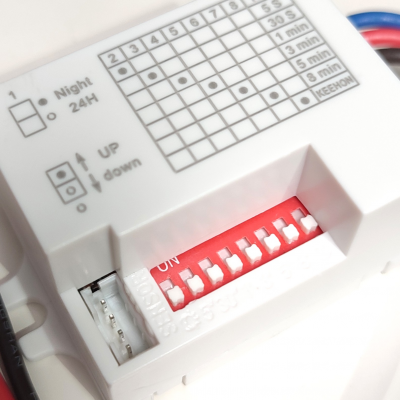

  • Radar motion detector with an opening angle of 360 degrees and a range of up to 6m. Adjustable from <10-2000 lux. Activation duration: 5 sec, 30 sec, 1 min, 3 mins, 5 mins, 8 mins or sensor off.
  • Switching capacity up to 100 W, 220-240V, also suitable for LED power.

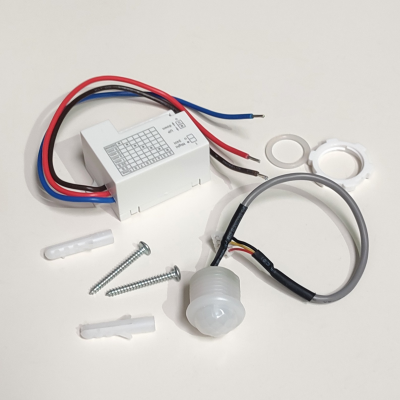

  • Easy mounting and installation. Suitable for installation in non-visible areas, behind cabinets or inside ceiling panels.
  • High sensitivity.

See more

Quantity
Add to wishlist

No queries yet, leave the first!
  Política de seguridad

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de entrega

(editar con el módulo de Información de seguridad y confianza para el cliente)

  Política de devolución

(editar con el módulo de Información de seguridad y confianza para el cliente)

Guarantee safe & secure checkout

Reembolso Garantizado

Asistencia Telefónica

2 años de Garantía

Envío 100% Gratuito

Pago 100% Seguro

The presence detector with motion sensor and lighting Mini PIR 360º is activated when it detects movement within its reception field and deactivates, after an adjustable delay of between 5 seconds and 8 minutes, when it stops detecting movement.

It has a detector with a light sensitivity between 10-2000 lux, the sensor's operation can be adjusted for day and night. If the LUX function is set to day mode, it will work according to the lux setting chosen for both day and night, whereas if it is set to the LUX function in night mode, it will only work at night.

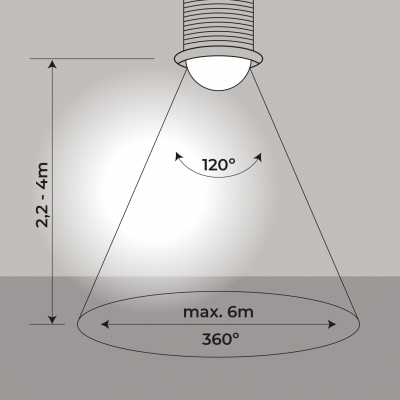

It is used to place it in any situation due to its compact size, it must be placed at a height between 2.2 and 4 metres and has a maximum stopping distance of 6 metres. The nominal voltage at which the detector operates is 220-240V/50-60Hz.

It has an IP20 protection rating.

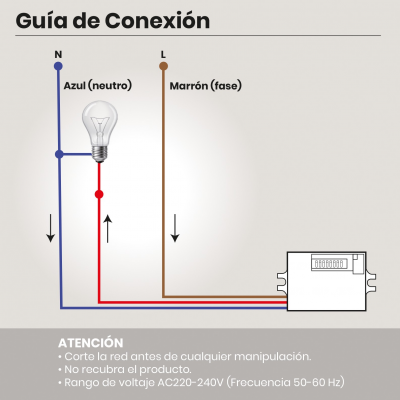

The connection of this detector is recommended for led lighting and always making the connection using the three wires (phase, neutral and bulb return).

The detector is an ideal element for non-visible areas such as behind cabinets or inside ceiling lights.


Benefit from the best prices and offers on the market in our online LED ATOMANT lighting shop.



LM1394

Data sheet

Aperture
360º
Protection
IP20
Information
Maximum detection distance 6m
